微信小程序自定义数据实现级联省市区组件功能

原创

admin·发布于 2025-07-16 12:30·阅读 248

在微信小程序中，省市区三级联动是常见的功能需求。一种轻量、高效且不依赖第三方组件的实现方式是使用自定义组件和本地 JSON 数据来驱动联动逻辑。本文将从数据准备、组件设计、逻辑处理三方面全面讲解如何实现该功能。

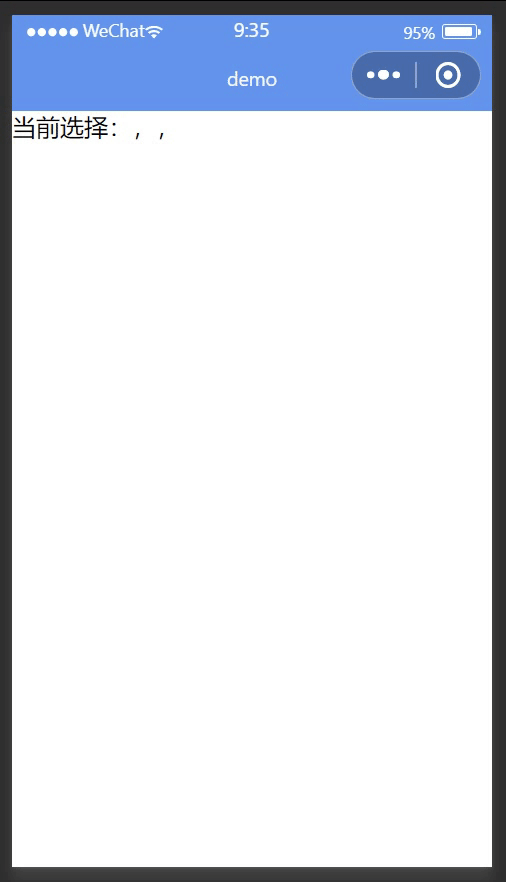

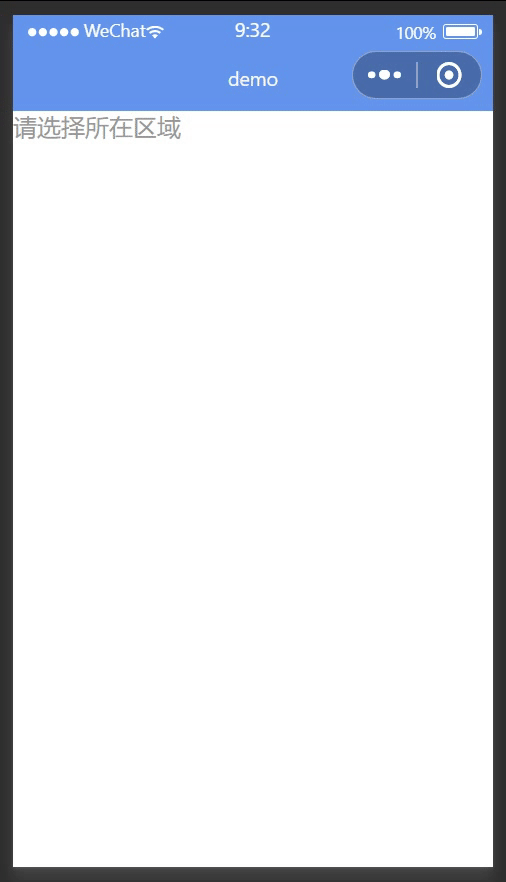

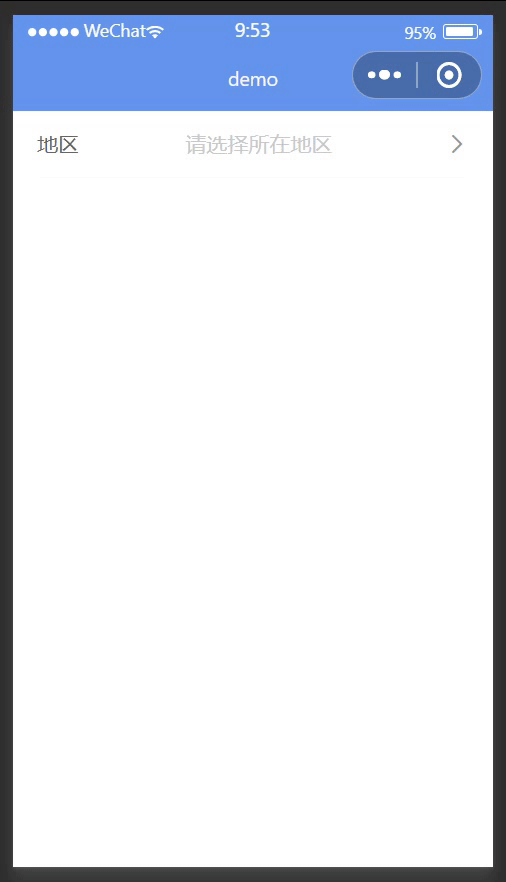

效果图

✨ 一、准备数据源

我们用一份结构清晰的 JSON 文件来定义所有省、市、区信息，例如 regions.json：

json 复制代码

[
  { "id": "11", "name": "北京市", "parent": "0" },
  { "id": "1101", "name": "北京市市辖区", "parent": "11" },
  { "id": "110101", "name": "东城区", "parent": "1101" },
  // ...
  { "id": "31", "name": "上海市", "parent": "0" },
  { "id": "3101", "name": "上海市市辖区", "parent": "31" },
  { "id": "310101", "name": "黄浦区", "parent": "3101" }
]

id：每一条的唯一编码
name：显示名称
parent：关联层级，上级编码为 0 表示顶级省份

保存到项目 data/regions.json 中，便于后续调用。

🛠 二、自定义组件设计

在 components/area-picker/ 下创建 area-picker 组件，包含：

area-picker.json：
json 复制代码
```
{
  "component": true
}
```

area-picker.wxml：

xml 复制代码

<!-- 三列 Picker 用于省市区选择 -->
<view class="area-picker">
  <picker mode="selector" range="{{provinceList}}" value="{{provinceIndex}}" bindchange="onProvinceChange">
    <view>{{provinceList[provinceIndex]}}</view>
  </picker>
  <picker mode="selector" range="{{cityList}}" value="{{cityIndex}}" bindchange="onCityChange">
    <view>{{cityList[cityIndex]}}</view>
  </picker>
  <picker mode="selector" range="{{districtList}}" value="{{districtIndex}}" bindchange="onDistrictChange">
    <view>{{districtList[districtIndex]}}</view>
  </picker>
</view>

area-picker.wxss：

css 复制代码

.area-picker {
  display: flex;
  justify-content: space-between;
}
picker {
  flex: 1;
  margin: 0 5px;
}

area-picker.js：

js 复制代码

import regions from '../../data/regions.json';

Component({
  properties: {
    value: {
      type: Object,
      value: { provinceId: '', cityId: '', districtId: '' }
    }
  },
  data: {
    provinceList: [],
    cityList: [],
    districtList: [],
    provinceIndex: 0,
    cityIndex: 0,
    districtIndex: 0
  },
  lifetimes: {
    attached() {
      this.initData();
    }
  },
  methods: {
    initData() {
      const provinces = regions.filter(r => r.parent === '0');
      const provinceList = provinces.map(r => r.name);
      this.setData({ regionData: regions, provinceList });
      this.updateCities(0);
    },
    updateCities(provIdx) {
      const provinces = this.data.regionData.filter(r => r.parent === '0');
      const seleProv = provinces[provIdx];
      const cities = this.data.regionData.filter(r => r.parent === seleProv.id);
      const cityList = cities.map(r => r.name);
      this.setData({ cityList, cityIndex: 0 });
      this.updateDistricts(cities, 0);
    },
    updateDistricts(cities, cityIdx) {
      if (!cities.length) return this.setData({ districtList: [] });
      const seleCity = cities[cityIdx];
      const districts = this.data.regionData.filter(r => r.parent === seleCity.id);
      const districtList = districts.map(r => r.name);
      this.setData({ districtList, districtIndex: 0 });
    },
    onProvinceChange(e) {
      const index = e.detail.value;
      this.setData({ provinceIndex: index });
      this.updateCities(index);
      this.triggerPick();
    },
    onCityChange(e) {
      const index = e.detail.value;
      const provs = this.data.regionData.filter(r => r.parent === '0');
      const selProv = provs[this.data.provinceIndex];
      const cities = this.data.regionData.filter(r => r.parent === selProv.id);
      this.setData({ cityIndex: index });
      this.updateDistricts(cities, index);
      this.triggerPick();
    },
    onDistrictChange(e) {
      const index = e.detail.value;
      this.setData({ districtIndex: index });
      this.triggerPick();
    },
    triggerPick() {
      const provs = this.data.regionData.filter(r => r.parent === '0');
      const selProv = provs[this.data.provinceIndex];
      const cities = this.data.regionData.filter(r => r.parent === selProv.id);
      const selCity = cities[this.data.cityIndex];
      const districts = this.data.regionData.filter(r => r.parent === selCity.id);
      const selDistrict = districts[this.data.districtIndex] || {};
      this.triggerEvent('change', {
        provinceId: selProv.id,
        provinceName: selProv.name,
        cityId: selCity.id,
        cityName: selCity.name,
        districtId: selDistrict.id || '',
        districtName: selDistrict.name || ''
      });
    }
  }
});

💡 三、实际页面中的调用示例

在页面 pages/index/index.wxml 调用组件：

xml 复制代码

<area-picker value="{{selectedArea}}" bindchange="onAreaChange" />
<text>当前选择：{{selectedArea.provinceName}} - {{selectedArea.cityName}} - {{selectedArea.districtName}}</text>

在 index.js 中：

js 复制代码

Page({
  data: {
    selectedArea: {
      provinceId: '', cityId: '', districtId: '',
      provinceName: '', cityName: '', districtName: ''
    }
  },
  onAreaChange(e) {
    this.setData({ selectedArea: e.detail });
  }
});
